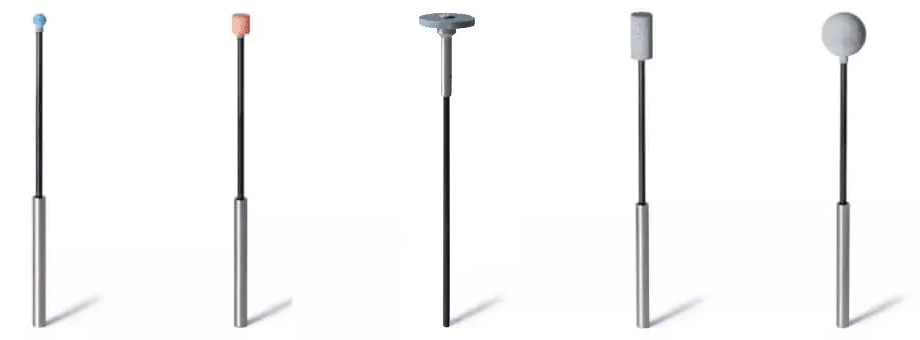

Xebec Stone™ Flexible Shaft

Soft contact abrasive ceramic fiber stone with cutting edges exposed across the entire surface. For deburring cross holes and detailed finishing of parts in CNC machines, robots or hand-held rotary tools. Available with ball, cylinder or disc type stones.

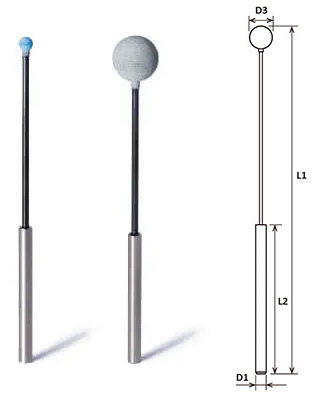

Ball Type

Tool Dimensions Shown: Metric MM

color	EDP	BALL SIZE (D3)	L1 OVERALL LENGTH (MM)	D1 SHANK DIAMETER (MM)	L2 SHANK LENGTH (MM)	Max RPM	Product Number
BLUE	10001	3	71.5	3	30	15,000	CH-PB-3B
BLUE	10002	4	72	3	30	13,000	CH-PB-4B
BLUE	10003	5	72.5	3	30	12,000	CH-PB-5B
BLUE	10004	6	73	3	30	10,000	CH-PB-6B
ORANGE	10008	3	71.5	3	30	15,000	CH-PO-3B
ORANGE	10009	4	72	3	30	13,000	CH-PO-4B
ORANGE	10010	5	72.5	3	30	12,000	CH-PO-5B
ORANGE	10011	6	73	3	30	10,000	CH-PO-6B
GRAY	10015	3	71.5	3	30	15,000	CH-PM-3B
GRAY	10016	4	72	3	30	13,000	CH-PM-4B
GRAY	10017	5	72.5	3	30	12,000	CH-PM-5B
GRAY	10018	6	73	3	30	10,000	CH-PM-6B
GRAY	10027	10	75	3	30	7,000	CH-PM-10B

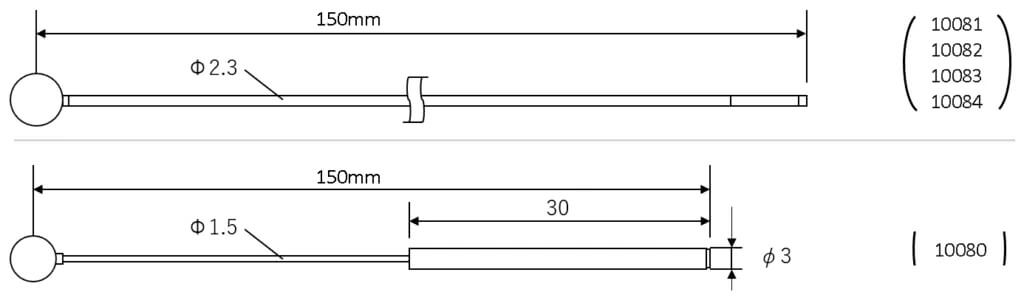

Extended Length Ball

Show Tool Diameter and Length in: MM

color	EDP	BALL SIZE (D3)	L1 OVERALL LENGTH (MM)	D1 SHANK DIAMETER (MM)	L2 SHANK LENGTH (MM)	Max RPM	Product Number
GRAY	10080	3	151.5	3	30	1,000	CH-PM-3B-L
GRAY	10081	4	152	2.3	N/A	3,000	CH-PM-4B-L
GRAY	10082	5	152.5	2.3	N/A	3,000	CH-PM-5B-L
GRAY	10083	6	153	2.3	N/A	3,000	CH-PM-6B-L
GRAY	10084	10	155	2.3	N/A	2,000	CH-PM-10B-L

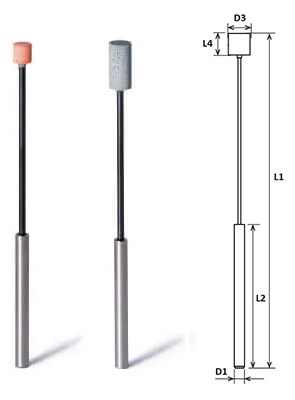

Cylinder Type

Tool Dimensions Shown: Metric MM

color	EDP	CYLINDER SIZE (D3 X L4)	L1 OVERALL LENGTH (MM)	D1 SHANK DIAMETER (MM)	L2 SHANK LENGTH (MM)	Max RPM	Product Number
BLUE	10005	3 X 3	71.5	3	30	15,000	CH-PB-3R
BLUE	10006	4 X 4	72	3	30	13,000	CH-PB-4R
BLUE	10007	5 X 5	72.5	3	30	12,000	CH-PB-5R
ORANGE	10012	3 X 3	71.5	3	30	15,000	CH-PO-3R
ORANGE	10013	4 X 4	72	3	30	13,000	CH-PO-4R
ORANGE	10014	5 X 5	72.5	3	30	12,000	CH-PO-5R
GRAY	10019	3 X 3	71.5	3	30	15,000	CH-PM-3R
GRAY	10020	4 X 4	72	3	30	13,000	CH-PM-4R
GRAY	10021	5 X 5	72.5	3	30	12,000	CH-PM-5R
GRAY	10022	5 X 10	75	3	30	12,000	CH-PM-5R
