For machine deburring, cutter mark removal and surface polishing of parts with a surface width of 4 inches or greater.
HOW TO SELECT
Grinding power differs depending on brush color. All Xebec brushes are made from the same proprietary ceramic fibers manufactured into rods, or bristles, of different thicknesses. The greater the bristle thickness, the more aggressive the cutting action. Refer to the chart below and select brush color based on the workpiece material and burr root thickness.

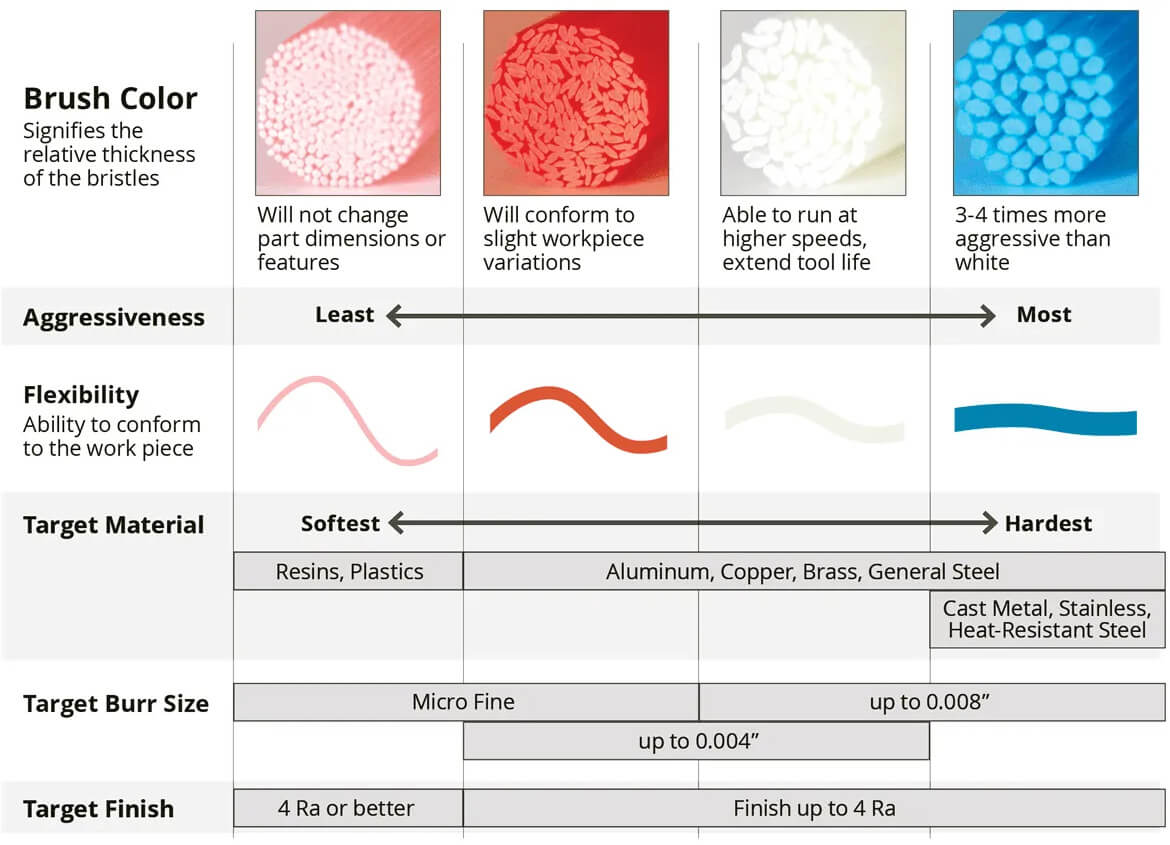

How to Choose Brush Color
How to Choose Brush Size
Select a brush size based on workpiece size and shape, interfering objects such as jigs, attachable tool length and cycle time.
It is recommended to use a brush size which is 1.5 to 2 times wider than the width of the surface of the workpiece. This allows the brush to engage the edge at 90 degrees for optimal grinding power. Using a larger brush than the surface width will also require the fewest number of passes and minimize cycle time.
