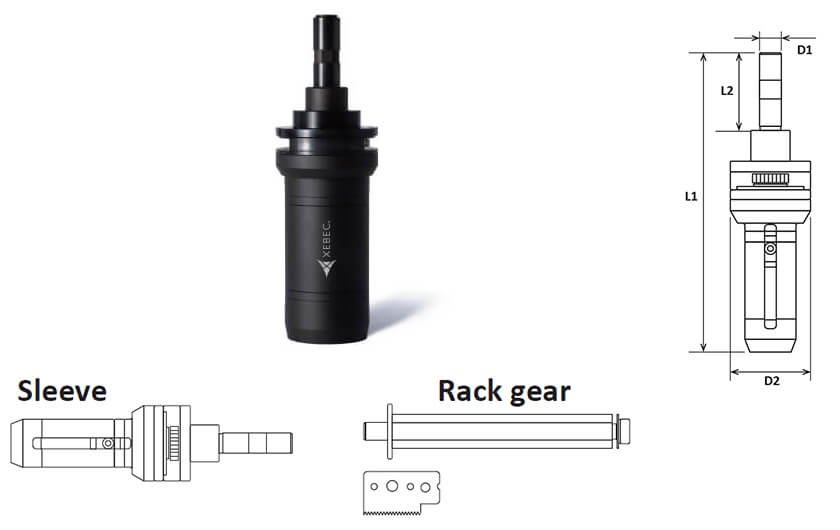

| EDP | D1 SHANK DIAMETER (MM) | D2 Neck DIAMETER (MM) | L1 OVERALL LENGTH (MM) | L2 shank LENGTH (MM) | WEIGHT (LBS) | MAX RPM | MATCHING SLEEVE (EDP) | PRODUCT NUMBER |
|---|---|---|---|---|---|---|---|---|

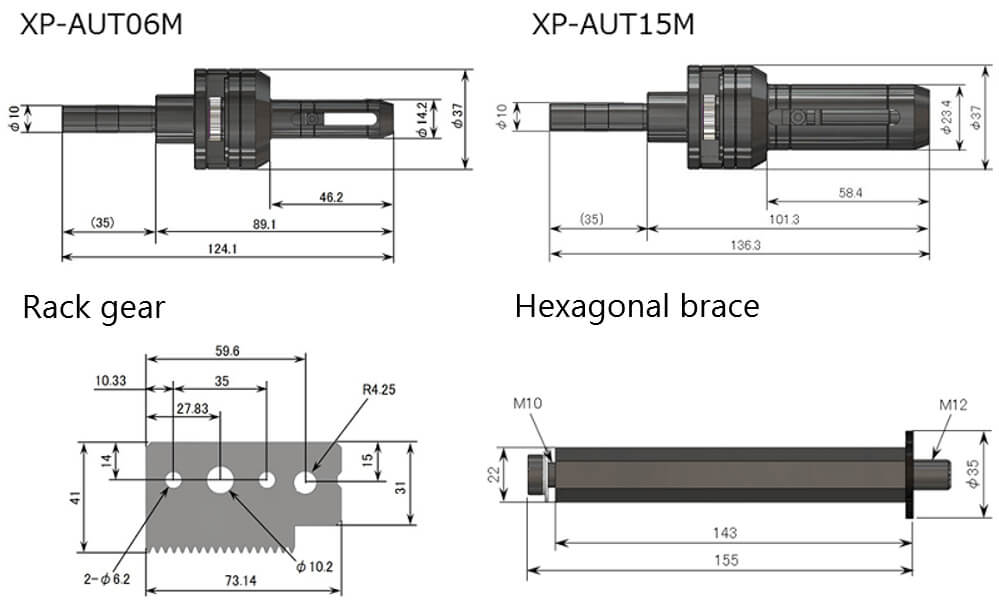

| 50010 | 10 | 37 | 124.1 | 35 | 0.485 LBS | 10,000 | 30015, 30006, 30012, 30045 | XP-AUT06M |
| 50011 | 10 | 37 | 136.3 | 35 | 0.595 LBS | 6,000 | 30013, 30005, 30011, 30044 | XP-AUT15M |

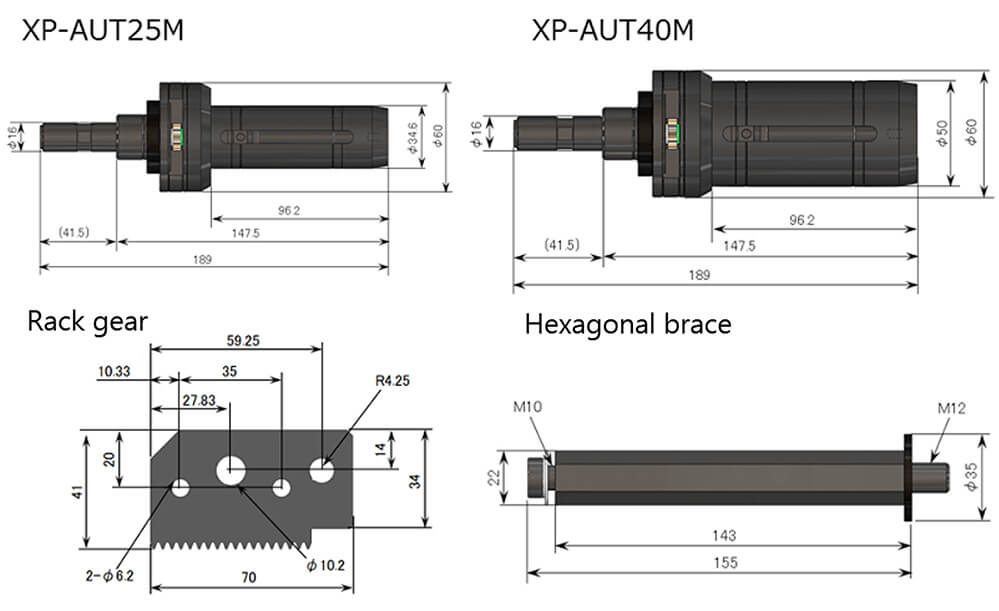

| 50012 | 16 | 60 | 189 | 41.5 | 1.753 LBS | 5,000 | 30004, 30010, 30043 | XP-AUT25M |
| 50013 | 16 | 60 | 189 | 41.5 | 2.006 LBS | 3,000 | 30003, 30009, 30042 | XP-AUT40M |
 |
